Description
The PDUMH20NET2LX 1.9kW Single-Phase Switched PDU provides advanced network control and
remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By
reducing the frequency of on-site visits, these advanced remote capabilities can save you money and
reduce downtime.

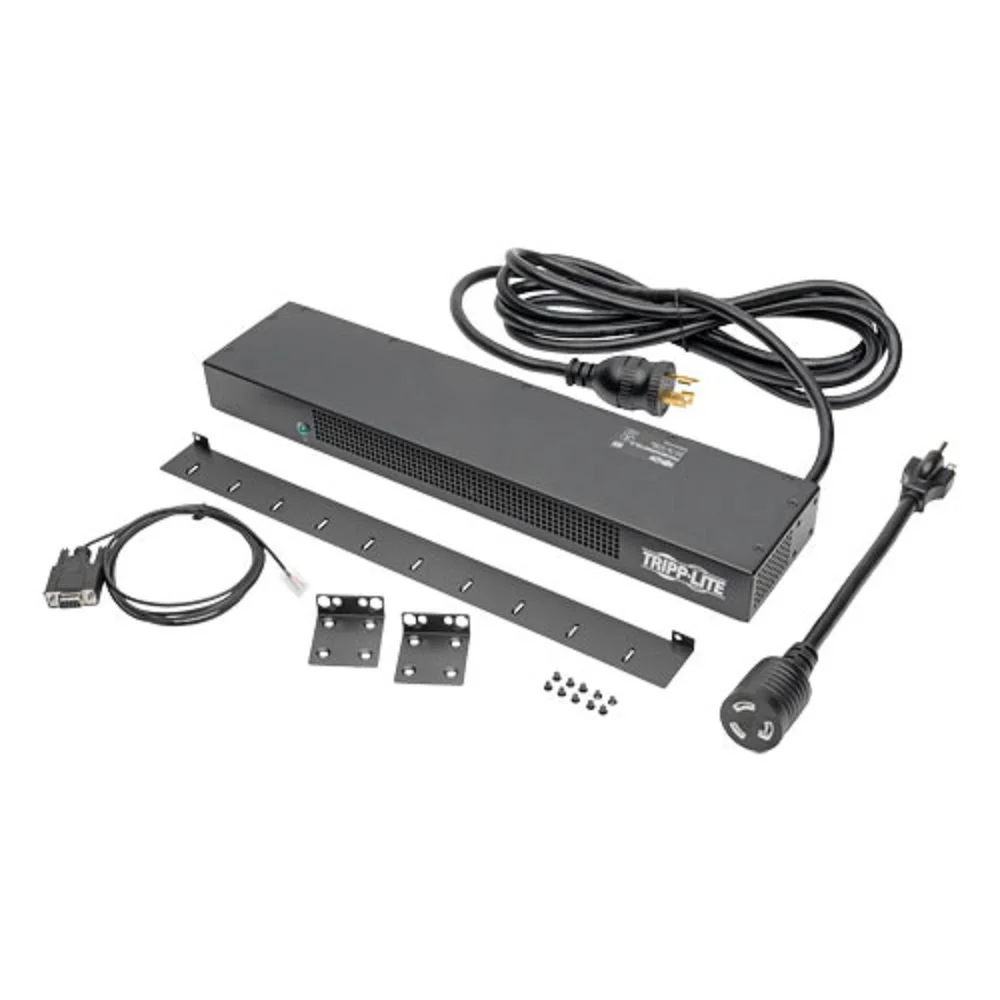

The 1U PDU features eight switched NEMA 5-15/20R outlets with an included cord retention bracket to

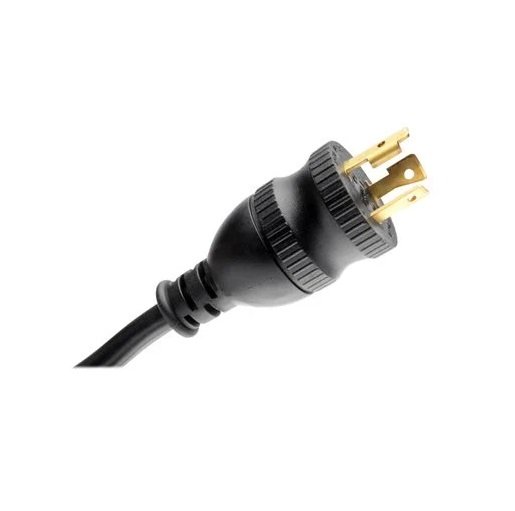

prevent cables from becoming accidentally disconnected. A 12-ft. (3.66 m) cord with NEMA L5-20P plug
and 5-20P plug adapter connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU
status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports
10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2
modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported
include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and
NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below
maximum capacity with no danger of overload. The single-phase PDU installs in 1U of space in EIA
standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a
counter with the included brackets and user-supplied screws.
Features:
- Distributes, Monitors and Manages Network-Grade AC Power 1.9kW 120V switched PDU with single
phase input Recommended for network applications requiring individual outlet control, load shedding and
remote monitoring of critical network components NEMA L5-20P plug with 12-ft. (3.66 m) cord and 5-20P
plug adapter connects to compatible AC power source Firmware upgrades support future product
enhancements Digital ammeter reports total PDU load in real time - 8 Switched NEMA 5-15/20R Outlets Distribute AC Power Individual outlets can be remotely controlled
to power up, power down, reboot or lock out devices Cord retention bracket prevents cables from
becoming accidentally disconnected Individual LEDs indicate which outlets are live - Built-In LX Platform Interface Pre-installed WEBCARDLX with the latest version of Power Alert Device
Manager firmware (PADM20) provides enhanced remote management capabilitiesPADM20 and
Power Alert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large
installations, including firmware update checks and backup and restoration of device configurations IP
based Auto Probe detects lost connectivity and restores service autonomously - Broad Communications Compatibility Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2,
SNMPv3, telnet, SSH, FTP, DHCP and NTP Supports automatic and manual assignment of IP address - Essential Safety Features Tiered access allows administrator and guest to log in via web
browser Immediate alert notifications via email or SNMP traps Supports user-specified alarm notification
thresholds Real-time clock backup maintains day/date even if PDU is unpowered - Flexible Mounting Options Included rack-mounting brackets compatible with front- or rear-facing
installation Compatible with 1U horizontal, 0U vertical, wall and under-counter mounting with included
brackets and user-supplied screws - TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchase
OVERVIEW
UPC Code: 037332203281
PDU Type: Switched
INPUT
PDU Input Voltage: 120V
Recommended Electrical Service: Single-phase 20A 120V service
Maximum Input Amps: 16
Maximum Input Amps Details: Agency de-rated to 16A continuous
PDU Plug Type: NEMA 5-20P; NEMA L5-20P
Input Phase: Single-Phase
Input Cord Length (ft.): 12
Input Cord Length (m): 3.66
OUTPUT
Output Capacity Details: 1.92kW (120V) / 16A total capacity; 16A max per outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (8) 5-15/20R
Output Nominal Voltage: 120V
Overload Protection: n/a
Customized Load Management: Receptacles 8 individually switched output receptacles
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display: Digital display reports total PDU output current in amps
Front Panel LEDs: 8 LEDs display power on-off status for each output receptacle. Ethernet Link and Status LED’s for network activity. System status LED for monitoring system operation.
Switches: Recessed reset button for rebooting SNMP management card without affecting AC output to connected equipment
PHYSICAL
Form Factors Supported: 1U rackmount
Material of Construction: Metal
Minimum Required Rack Depth (cm): 23.62
Minimum Required Rack Depth (inches): 9.3
PDU Form Factor: Horizontal (1U)
Unit Dimensions (hwd / cm): 4.44 x 44.4 x 10.8
Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.25
Unit Weight (kg): 2.72
Unit Weight (lbs.): 5.99
ENVIRONMENTAL
Operating Temperature Range: 0C ~ 40C (32F ~ 104F)
Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
Relative Humidity: 5 to 95% (non-condensing)
COMMUNICATIONS
SNMP Compatibility: Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
SPECIAL FEATURES
TVSS Grounding: Rear panel grounding lug
High Availability PDU Features: Auto Probe Monitoring and Reboot (included)
