Description

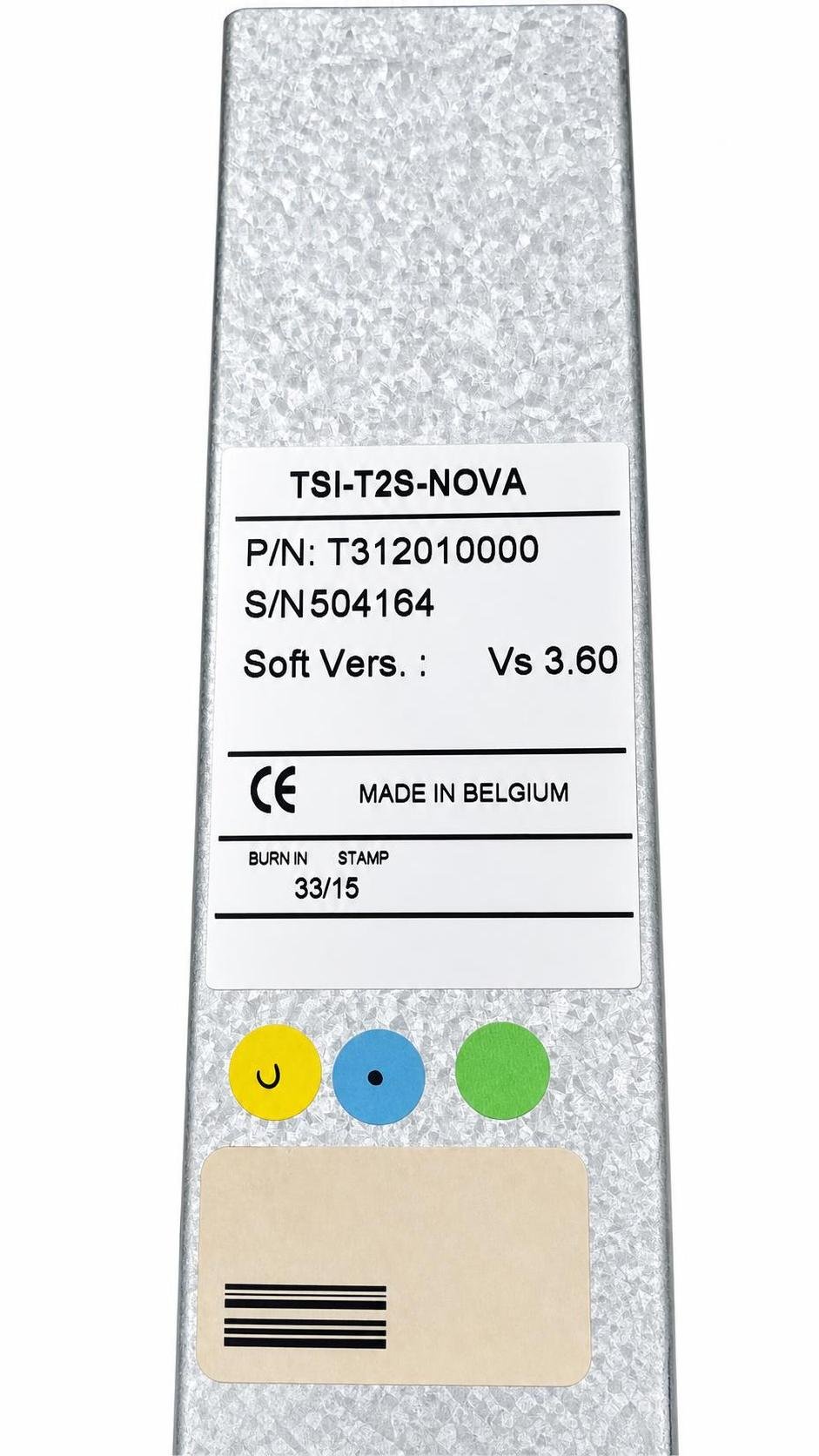

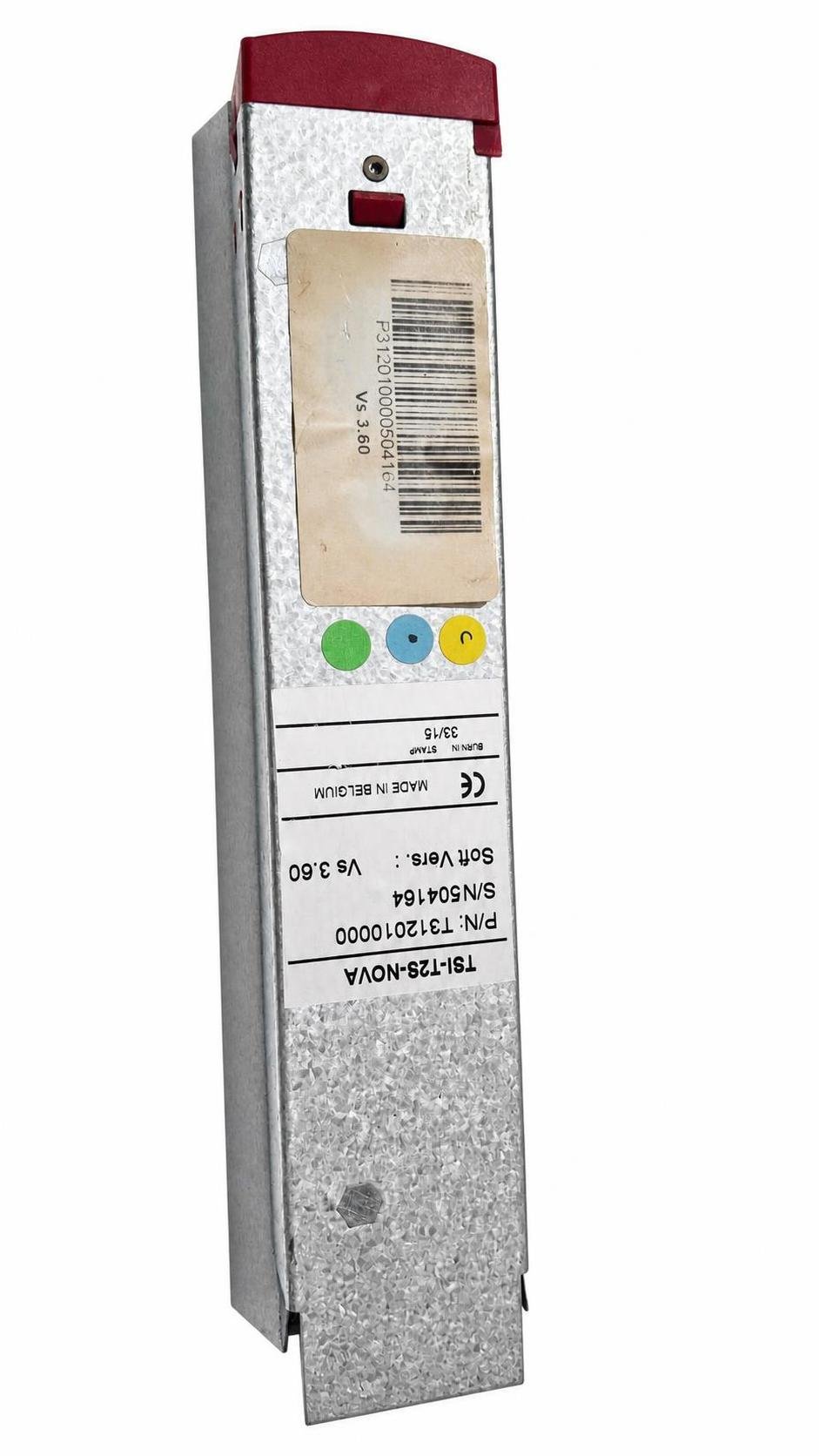

The T2S is an extended monitoring unit for the TSI inverter range. By default it is provided with all BRAVO solution.
The T2S can monitor up to 32 inverters, provide Major, Minor Alarm and one user selectable free contact with signalizing. It is able
to monitor 2 digital inputs.
to monitor 2 digital inputs.

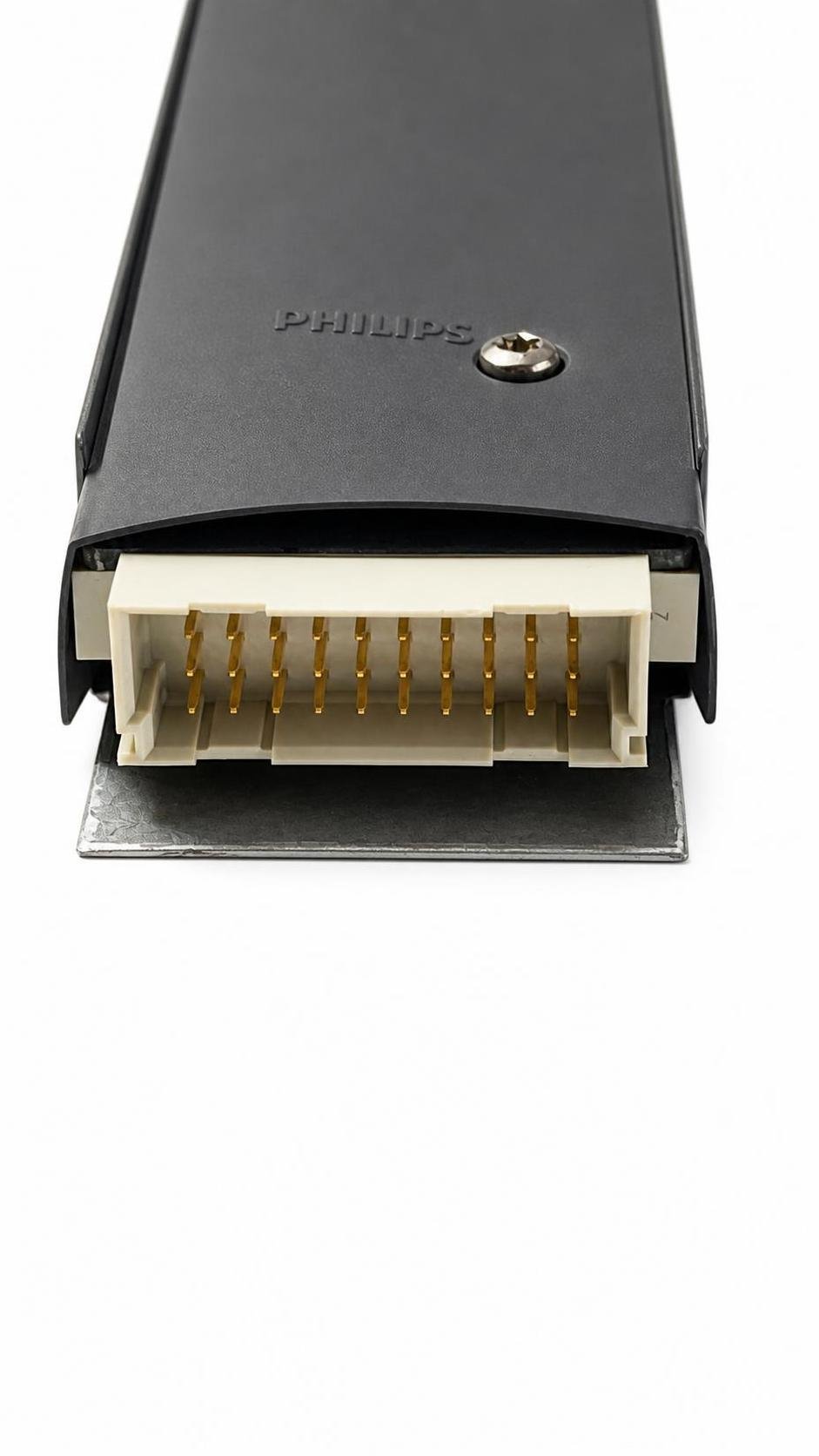

When several shelves are used, the T2S will be usually installed in the most upper shelf, but bare in mind that the free potential
contact, the digital MODBUS and CanBus will be ONLY available on the same shelf that the one where T2S is plugged. We remind
you that only one T2S is required for monitoring one system (Maximum 32 inverters).
contact, the digital MODBUS and CanBus will be ONLY available on the same shelf that the one where T2S is plugged. We remind
you that only one T2S is required for monitoring one system (Maximum 32 inverters).
To summarize, T2S have been designed in order to:
- Monitor TSI inverters
- Give visual alarms
- Provide free potential alarm contact
- Deliver status through laptop and HyperTerminal®
- Supply communication on MODBUS and CANBUS protocols
- Send configuration to TSI inverter
- Receive configuration from TSI inverter on PC
- Monitor 2 digital inputs
- Record up to 200 events
- Generate alarm “check log file” if any abnormal events appears
- Order a server shutdown

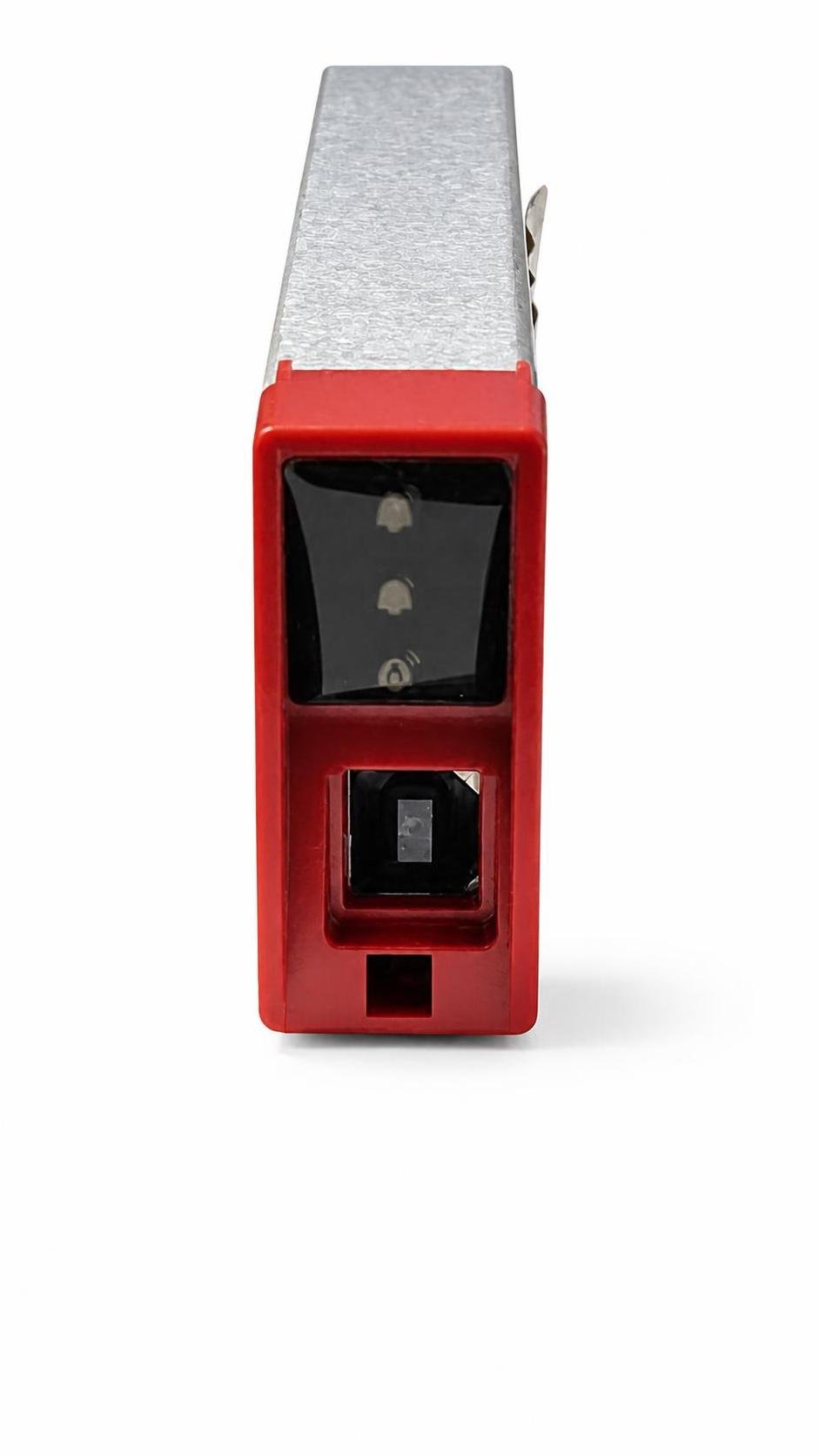

The T2S monitor allows technicians to visually control when alarms are
present on the system by watching the front panel.

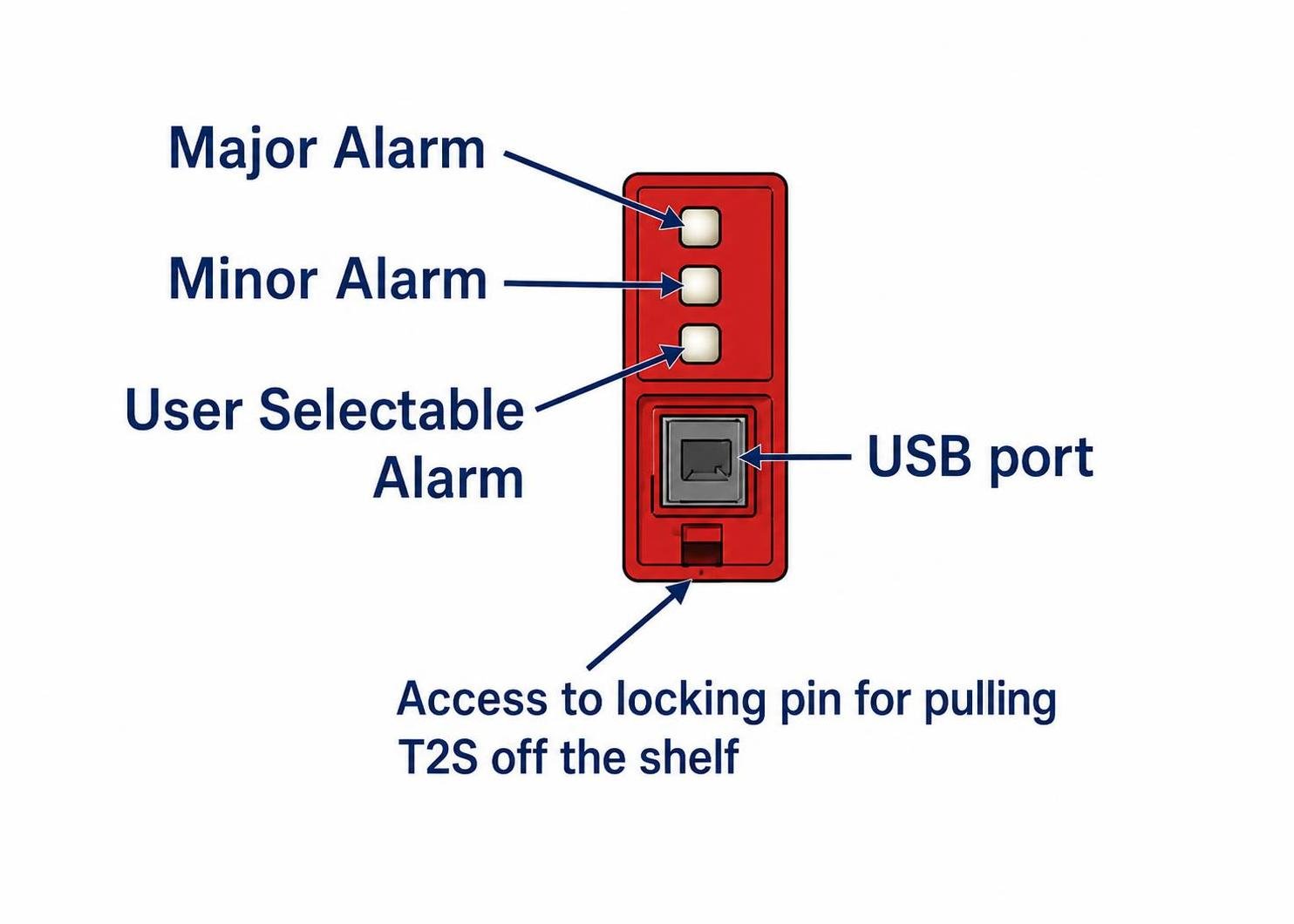

LED are green for no alarm and are red for related alarms.
It is known that there is Major alarm or Minor alarm or User selectable
alarm present when corresponding LED are red.
User Selectable Alarm can be associated with any internal operating alarm.
The LED user selectable alarm is green when the condition is met or
flashing when T2S is exchanging Data with TSI inverter EEPROM
