Description

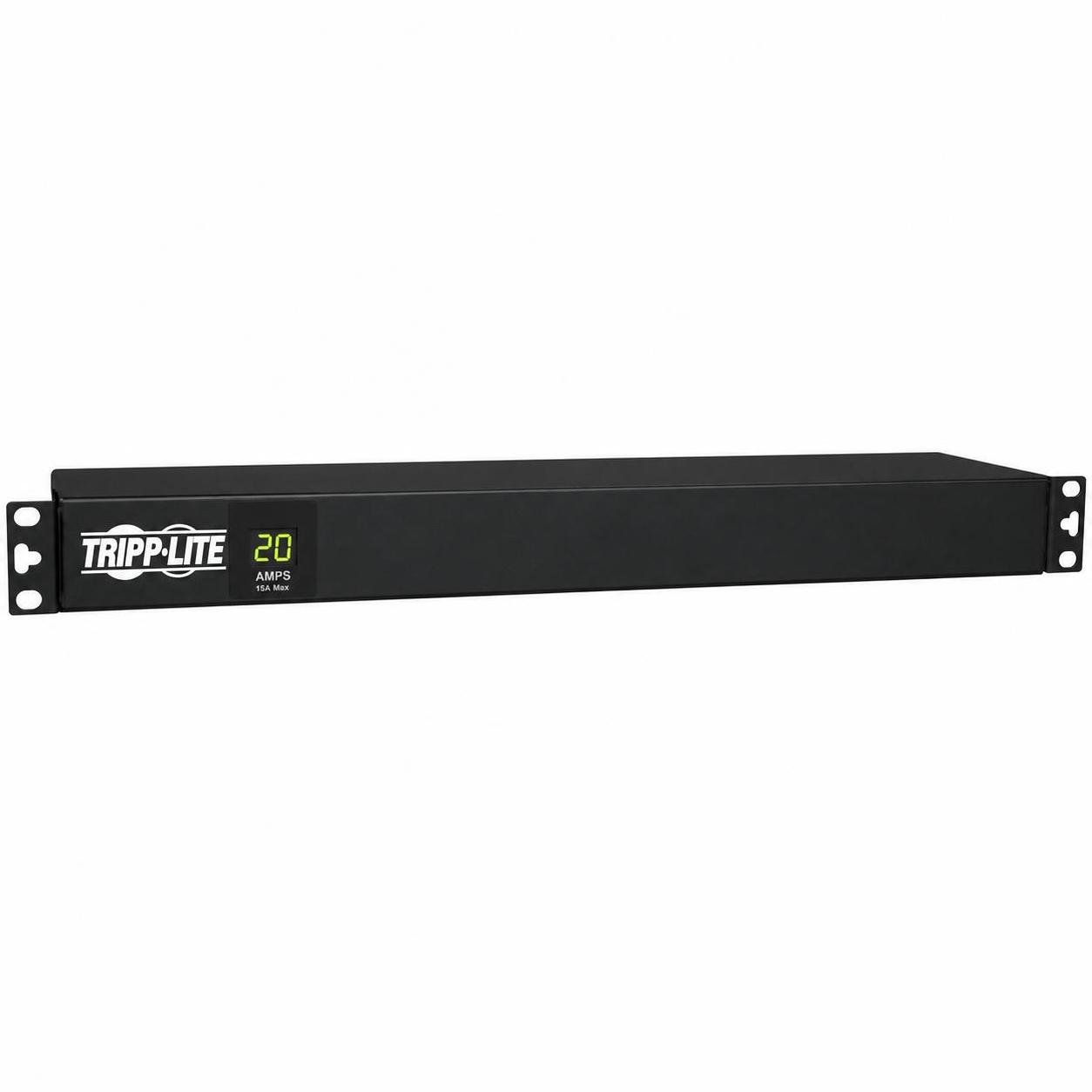

1.92kW Single-Phase Metered PDU, 120V (12 5-15/20R), L5-20P / 5-20P, 110-127V Input, 15ft Cord, 1U Rack-Mount
Tripp Lite’s PDUMH20 provides network-grade power distribution from a UPS, generator or utility source for servers, switches and other rack-mount equipment. The PDU’s durable metal housing and industrial-strength components are built for years of reliable service in high-availability environments, like network closets, server rooms and data centers.

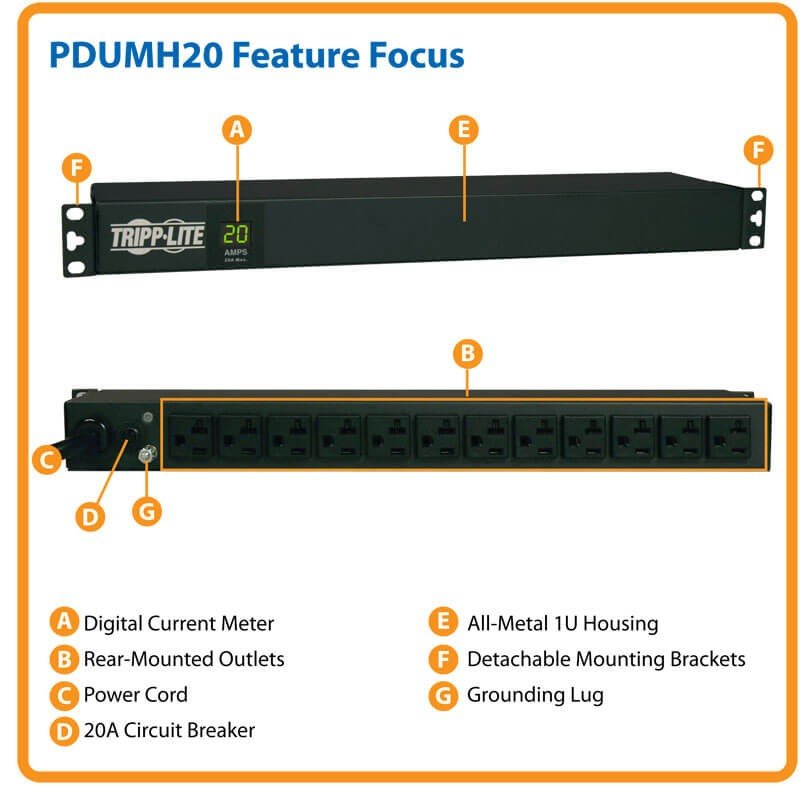

Features
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

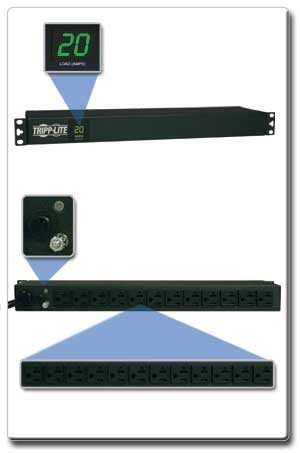

- Built-in 2 digit visual meter continuously reports PDU load level in amps
- Attached NEMA L5-20P 20A 120V input plug with 15 ft. / 4.5m line cord
- Includes 5-20P 20A 120V plug adapter
- 1U horizontal rackmount format installs in one rack space

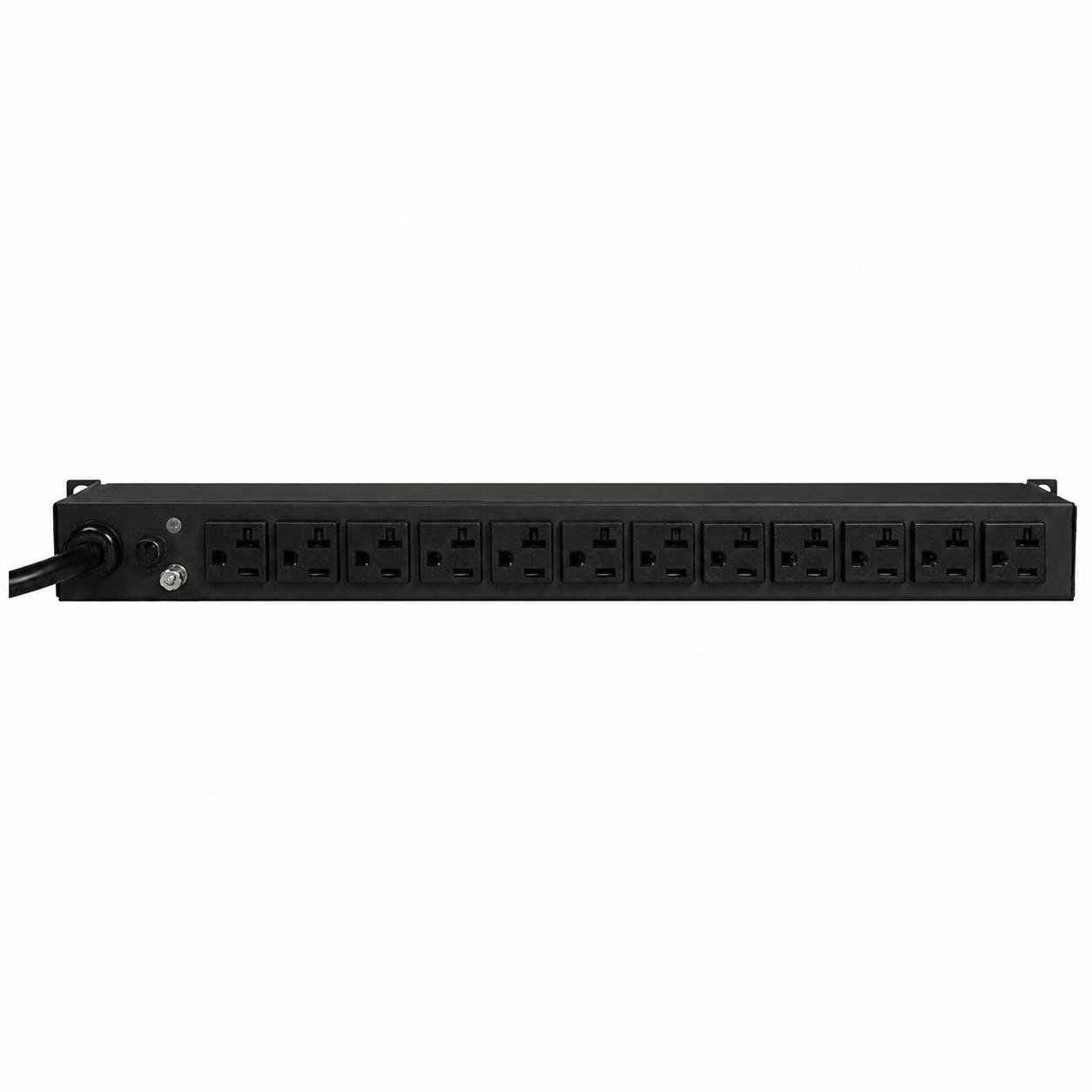

- 12 NEMA 5-15/20R outlets
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation 4.5 in. / 11.4cm depth
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug
Package Contents
- PDUMH20 Metered rackmount PDU

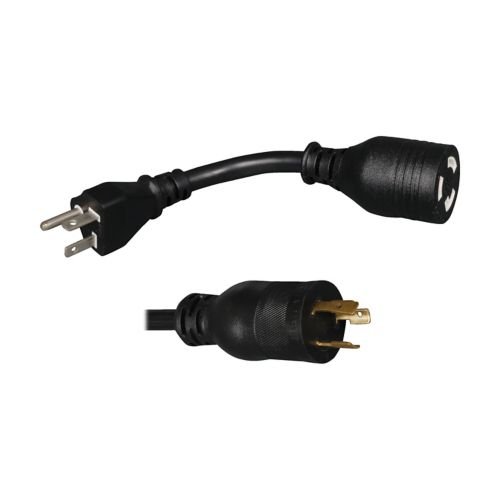

- L5-20R to 5-20P plug adapter
- Owner’s manual with warranty information
