Description

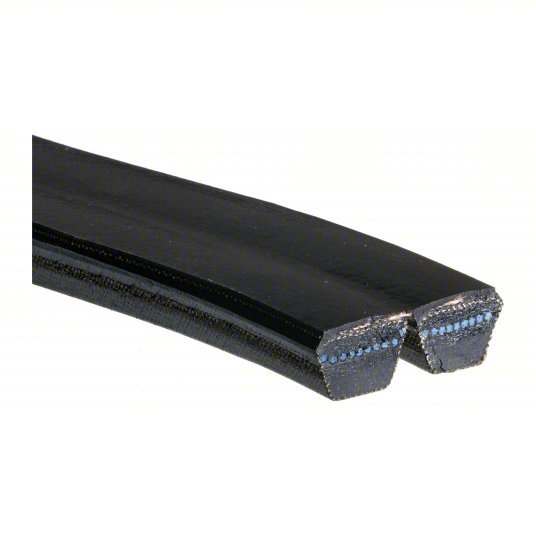

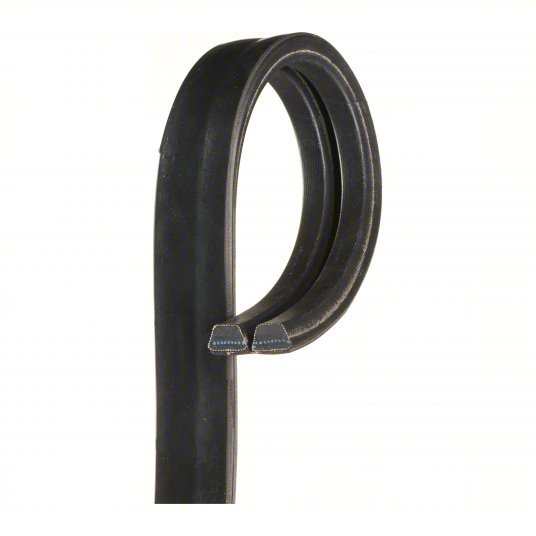

Gates Hi-Power II PowerBand V-Belt construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove. It offers a solution for drives where single belts vibrate, turn over, or jump off the pulleys. They consist of several V-belts joined together by a permanent, high strength tie band offering a tougher more stable solution compared to a single belt.
Markets/Applications
Hi-Power II PowerBand belts are especially developed for high-power drives subjected to pulsating loads and recommended for drives where single belts vibrate, turn over, or jump off the drive.
Features/Advantages
- Concave sidewalls provide proper cord support and full contact with the sheave-groove for equal loading and uniform wear
- Flex-bonded tensile cords are vulcanized as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads
- The Flex-Weave Cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt, and heat
- The Tie Band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Gates Curves provide full contact with pulley grooves for uniform loading of cords and uniform wear
- Temperature Range: -22 degrees F to +140 degrees F
- Meets RMA oil and heat resistant standards
- Meets RMA static conductivity requirements
Recommended Sheaves
- Multi-Duty Sheaves
Outside Circumference: 66.75 in / 1695 mm
Angle: 40

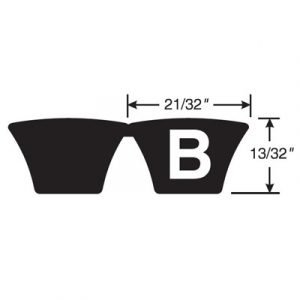

Belt Height: 13/32 in
Belt/Slab: Belt
Belt Back Side: Smooth
Belt Inside: Smooth
Product Type: Industrial V-Belts
Construction: Banded
Cord Material: Polyester
Maximum Temperature: +140°F / +60 °C
Minimum Temperature: -22°F / -30 °C
Number of Sides: Single Sided
Static Conductive: Yes
Thickness: 12 mm
