Description
Mfr description

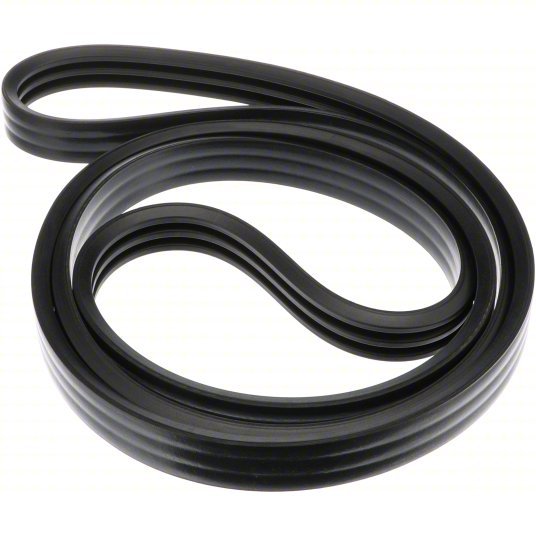

3/3V750 SMOOTH POWERBAND 9385-3075
- Aramid tensile cords combine limited stretch with extraordinary strength and durability that is pound-for-pound stronger than steel
- Flex-bonded cords are strongly secured to the body of the belt for equal load distribution of bending stress without cord deterioration
- Distinctive green backing provides protection with machined side walls that provide even sheave groove contact for smooth operation, less slip and reduced wear
- Patented Ethylene compound and optimized notches molded into the belt during manufacturing increase flexibility for compatibility with small diameter sheaves
- Tested to transmit an average of 50% more horsepower than standard Super HC® Molded Notch belts
- Available on demand in Matched sets (not V80® program eligible)
- Meets ARPM/RMA IP-3-2 oil and heat resistant standards andIP-3-3 static conductivity requirements
- REACH and RoHS 2compliant.
Outside Circumference: 76.03 in / 1931 mm
Angle: 38
Belt Height: 21/64 in
Belt/Slab: Belt
Belt Back Side: Smooth
Belt Inside: Smooth
Product Type: Industrial V-Belts
Construction: Bandless
Cord Material: Polyester
Maximum Temperature: +180°F / +82 °C
Minimum Temperature: -22°F / -30 °C
Number of Sides: Single Sided
Static Conductive: Yes
Thickness: 9 mm
Trademark: Super HC™ Powerband™
Unitset: Yes
