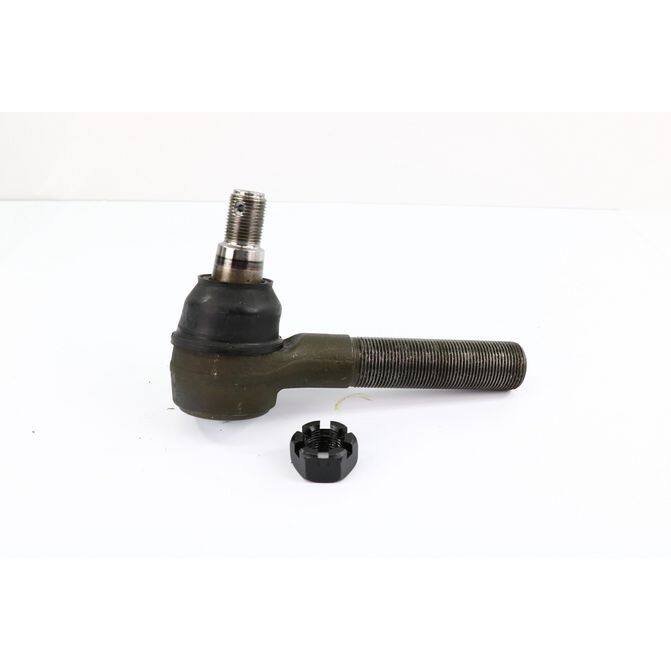

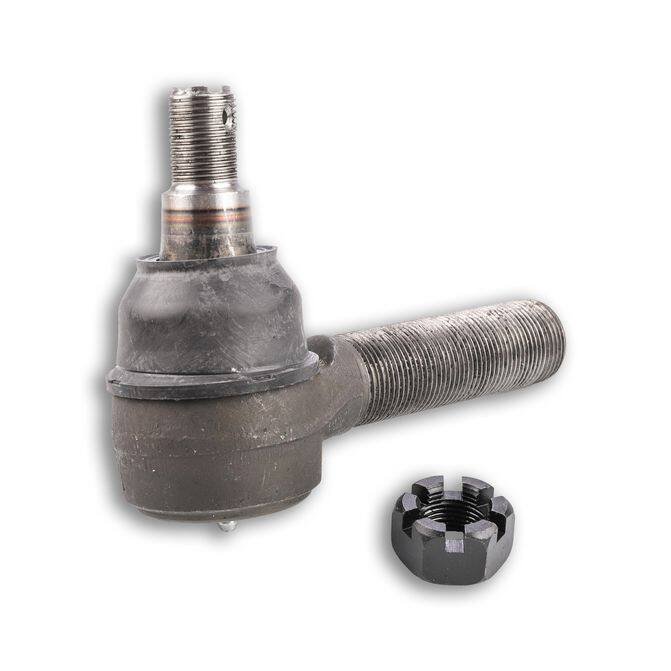

This tie rod end has a larger taper diameter of 1.25 inches and a smaller taper diameter of 1.08 inches. The rod thread diameter measures 1.25 inches with 12 threads per inch, while the stud thread diameter measures 0.875 inches with 14 threads per inch. Specifically designed for the roadside of the vehicle, it has a taper length of 1.36 inches and features a zerk fitting at the bottom for lubrication purposes. The primary function of this tie rod end is to transmit steering motion from the steering gear to the wheels, ensuring precise and smooth control over steering operations.
HAS BOX DAMAGE DUE TO STORAGE.
HAS BOX DAMAGE DUE TO STORAGE.
HAS BOX DAMAGE DUE TO STORAGE.
- Type: 1
- Industry Number: ES2090L
- Large Taper Diameter: 1.25 in.
- Rod Thread Diameter: 1.25 in.
- Rod Threads per in: 12
- Rod Thread Direction: LH
- Notes: Zerk on bottom
- Small Taper Diameter: 1.08 in.
- Stud Center to Rod End: 7.37 in.
- Stud Thread Diameter: 0.875 in.
- Stud Threads per in: 14
- Style: Roadside
- Taper Length: 1.36 in.
| AUTOMANN | 462.ES2090L, 462.ES3034R | |
|---|---|---|
| DAYTON PARTS | 310-397, 310-433 | |
| EUCLIDE | -9880 | |
| MOOG | ES2090L | |
| OTRO | TR26281 | |
| PAI | ARE-9987, EM99870 | |
| POWER PRODUCTS | PP26281 | |
| OTHER | 462ES2090L, A2320239001, 462ES3034R, R230072 |
