Description

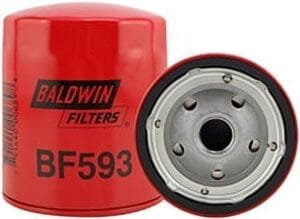

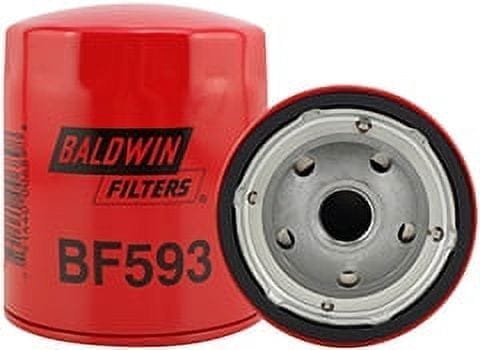

Fuel Filter, Filter Design Spin-On, Secondary Fuel Spin-On, Micron Rating 20 micron, Height 4 13/32 in, Length 4 13/32 in, Width 3 23/32 in, Outside Dia. 3 23/32 in, Includes I. Gasket, Integral Post
Baldwin Filters is a global provider of filtration products and services. Our mission is to protect our customers’ engines and mobile equipment, from first to last use, through innovative filtration solutions and outstanding customer service. Baldwin offers superb product quality, an extensive distribution network and the industry’s broadest product line. This comprehensive portfolio of filtration products and technologies offers customers a single streamlined source for all their engine and mobile filtration needs.
Product Attributes
| Thread | 13/16 |
| Contains | Integral Post Seal |
| Fits | Detroit Diesel Engines |
| Height | 4.40625 |
| Height (mm) | 111.9 |
| Integral Gasket | [1] Included |
| Notes | Can be used with {FB1302} base. |
| Outside Diameter 1 | 3.71875 |
| Outside Diameter 1 (mm) | 94.5 |
| Per Inch | 12 |
| Replaces | GMC 23518526, 23518669 |
| Brand | Part Number |
|---|---|
| 23518669, LFP928F, BALBF593, BLDBF593 | |
| ACDELCO | TP928L, TP928F, TP928 |
| AIR REFINER | PF5021 |
| ALLIANCE | ABPN10GFF5021 |
| AMERICAN PARTS | 95122MP, 95122, 597 |
| AUTO EXTRA | HD3122 |
| BALDWIN FILTERS | BF593 |
| BIG A FILTER | 95122MP, 95122, 597 |
| BLOUNT | 541917, 538231 |
| CARQUEST | 86122MP, 86122 |
| CATERPILLAR | 9Y4419, 3I1219, 3I0755 |
| CHAMPION | 27853 |
| CHAMPION LABORATORIES | LFP928F |
| CHAMPION SPARK PLUG | HF517 |
| CLARK EQUIPMENT | 1992215 |
| CLARK MATERIAL HANDLING CO. | 1992215 |
| COOPERS | FSM4019 |
| CROSLAND | 5009 |
| DELUXE | WD619, 619 |
| DETROIT DIESEL | 23530640, 23518669, 23518526 |
| DONALDSON | P779445, P550928, P169095, FFP170928, FFP550928 |
| FILCA | FC295US |
| FILTERMART | 3A11008, 208772 |
| FLEETGUARD | FF5021 |
| FLEETRITE | FFR85021 |
| FLO-LINE | PF5021 |
| FORD MOTOR | E1PZ9155B, E1PZ9155A, E1PJ9155AA, E1929155A |
| FRAM | P3595 |
| FRANKLIN | 1505467 |
| GFF | FFS1021 |
| GK INDUSTRIES | HD3122 |
| GLOBAL FILTERS | 40593 |
| GM GENERAL MOTORS | 6438836, 25013273, 25010959, 25010957, 25010257, 25010256, 23518669, 23518526, 25011423 |
| GMC | 23518526 |
| GONHER | GP93M, GP93F, GP93 |
| GRAINGER | 2KYJ1 |
| GROVE | 9414100619 |
| GUARDIAN FILTER CO. | G033122 |
| GUD FILTERS | Z152 |
| HASTINGS | FF838 |
| HASTINGS OLD NUMBER | 838 |
| INGERSOLL RAND | 59686261, 59651232, 35330927 |
| JURA (HIFI) | SN5021 |
| KOEHRING | 26789 |
| KOMATSU | 135819 |
| KORODY COLYER | FBF593 |
| KRALINATOR | F122 |
| LINK-BELT | 3A11008 |
| LUBER-FINER | LFP928F |
| MACK | 5839FF5021, 3076P3595 |
| MOTORCRAFT | FD789FP, FD789, FD267, FD804 |
| NAPA GOLD | 3122MP, 3122 |
| P&H PAWLING & HARNISCHFEGER | 1046Z467, 1046Z2326 |
| PARTS MASTER | 73122 |
| PREMIUM GUARD | DF30020 |
| PROMATCH | 9Y4419 |
| PUROLATOR | PER228F, F50228 |
| QUAKER STATE | QS3595 |
| RYCO | Z152 |
| SAKURA | FC6504 |
| SF-FILTER / SCHUPP | SK3533 |
| SURE FILTER TECHNOLOGY | SFF0928 |
| TIMBERJACK | 8411230, 411230 |
| VERMEER | 27162001 |
| WABCO | VS7331 |
| WIX | 33122MP, 33122 |
| WIX FILTERS | WIX FILTERS, 33122 |
| WOODGATE | WGF5021 |
BALDWIN BF593 Fits Vehicles
- GMC C5000 (1979)
- Chevrolet S7 (1988-1990)
- Chevrolet C50 (1979)
- Ford FT900 (1985-1987)
- Blue Bird All American FE (1989-1991)
- Blue Bird SHL All American (1988-1989, 1991)
- Ford LN600 (1981-1985)
- Ford LN700 (1980-1986)
- Ford LN800 (1980-1985)
- Ford C700 (1980-1986)
- Ford C600 (1980-1986)
- Ford B-600 (1980-1987)
- Ford B-700 (1980-1987)
- Ford F-800 (1980-1987)
- Ford F-600 (1980-1987)
- Ford F-700 (1980-1987)
- Ford C800 (1980-1986)
- GMC B6000 (1981-1991)
- Chevrolet B60 (1981-1991)
- GMC C6000 (1981-1990)
- GMC C7000 (1980-1990)
- Chevrolet C60 (1981-1990)
- Chevrolet C70 (1980-1990)
