Description
Prime Guard® Spin‑On Oil Filters deliver dependable engine protection built for today’s demanding conditions. With 300+ PSI burst strength, these filters are engineered for durability and performance. Each filter features high‑quality cellulose or cellulose‑synthetic blend media that provides 95% filtration efficiency at 30 microns. A robust NBR gasket ensures a secure, leak‑free seal, while the anti‑drainback valve helps prevent dry starts and reduces engine wear. Designed and tested to USCAR‑36 specifications—Prime Guard filters ensure consistent fit, quality, and performance across applications. All new‑car warranties remain fully intact, and every filter is backed by a manufacturer defect warranty.
Features:
- Prime Guard® Spin‑On Oil Filters with 300+ PSI burst strength for reliable performance
- Spin-on canister design with cellulose or cellulose-synthetic blend media
- 95% filtration efficiency at 30 microns captures contaminants for engine protection
- NBR seal gasket provides robust, leak-free seal when properly installed
- Anti-drainback valve prevents dry starts by keeping oil in filter during shutdown

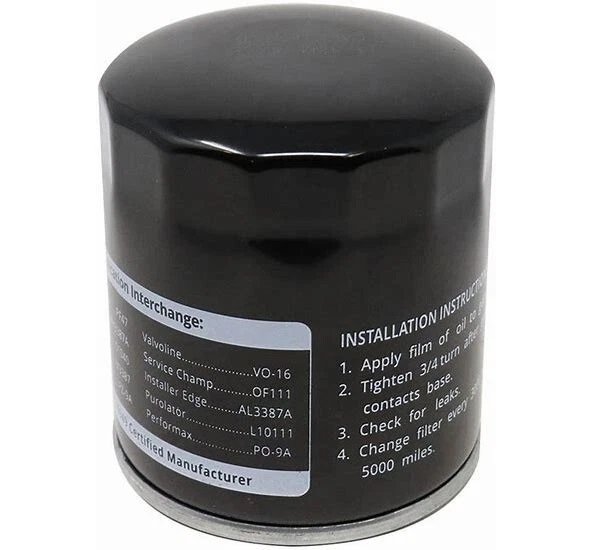

- Installation: tighten until contact, then 3/4 to full turn additional for proper seal
- Designed and tested to USCAR-36 specifications for quality fit and function across applications.
- All new car warranties remain in effect when installing Prime Guard oil filters
Product Attributes
| Filter Type | Spin-on |
| Filter Media Material | Enhanced Cellulose |
| Micron Rating | 15~25 |
| Flow Rate | 15L/min |
| Anti-Drain Back Valve | yes |
| Bypass Relief Valve | yes |
| Gasket Type | NBR |
| Height | 3.41 IN |
| Gasket Inside Diameter | 2.38 IN |
| Gasket Outside Diameter | 2.71±0.02 IN |
| Gasket Thickness | 0.16 IN |
| Outer Diameter Bottom | 2.96 IN |
| Inside Thread Size | M18x1.5-6H |
| Gasket Outside Diameter | 60.5±0.5 MM |
| Burst Pressure | 290 PS |
| Bypass Relief Valve Setting | 21-25 PS |
| Brand | Part Number |
|---|---|
| ACDelco | PF1225 |
| Amsoil | ASF29 |
| Atlas | G-75 |
| Atlas (Canada) | OF-L11 |
| Autoedge | AL3387A |
| Autopart International | FE199 |
| Baldwin | B38 |
| Beck/Arnley | 041-8063 |
| Big A | 92040 |
| Bosch | 3331 |
| Bpro Auto | 1BP00184AA |
| CARQUEST | 85040MP |
| Canadian Tire | 17-1705-0 |
| Car Care | IOF3387 |
| Carquest Extended Performance | P85040 |
| Carquest Premium Filters | 85040MP |
| Carquest Standard | R85040MP |
| Cartek | CTK3387A |
| Casite Filters | CF40 |
| Castrol | CAS3387A |
| Cenex | CO445 |
| Champ | PH47 |
| Champ filters | PH37 |
| Champion Filters | OF02 |
| Chrysler | 05018478AA |
| Citgo Petroleum | C111 |
| Co-op | VER-111 |
| Deluxe Walker | WD-444 |
| Deutsch | D367 |
| Diesel Equipment | 1AMFL00002 |
| Donaldson | LFP55-0047 |
| Driveworks | DW-111 |
| Duralast | MD1000 |
| Dynalife | CN-3387 |
| ECOBREX | ESOF3387A09EX |
| ECOGARD | X111 |
| ECOGUARD | X111 |
| EXXON/MOBIL OIL | M1101, M1101A |
| FRAM | DL3387A, M1-101A, M1-101, XG3387A, PH3387A, TG3387A |
| FRAM Drive | FD3387A |
| FRAM Force | FF3387A |
| FRAM Titanium | FS3387A |
| FVP | R1040 |
| Facet | 47 |
| Federated | PG111BF |
| Fiat | 7085110 |
| Firestone | 7058122 |
| Flag Filters | C-3387A |
| Fleetguard | LF16213 |
| GK Industries | OF10111 |
| GMB | 699-0022 |
| General Motors | 6439901 |
| Gonher | GP-46 |
| Group 7 | V111 |
| Hastings | B7446 |
| Havoline | T-22 |
| Heritage | HL3387A |
| Hutchens | SF-111 |
| IAPCO | OF307 |
| Interfil | OF-3387 |
| Isuzu | 8192102840 |
| Jiffy Lube | JL111 |
| John Deere | TY9426 |
| K&N | HP-1001 |
| Kralinator | L147 |
| LUBER-FINER | PH47 |
| Lee | LF-111 |
| Luber-finer | PH37 |
| MAHLE | OC715 |
| MANN-HUMMEL FILTERS | L10111, W712/75, W712/22 |
| MOBIL OIL | M1101A, M1101 |
| Magneti Marelli | 1AML00002A |
| Mann-Filter | ML 1000 |
| Marathon | MO3387A |
| Mercury Marine | 35-883702Q |
| MicroGard | MGL51040 |
| MicroGard Select | MSL51040 |
| Mighty Distributing System | M3387 |
| Mileguard | MO3387A |
| Mitsubishi | J8132313 |
| Mobil 1 | M1-101 |
| Mopar | FE00199 |
| Motor Trend | ML3387A |
| Motorcraft | FL31 |
| NAPA Gold Filters | 1037 |
| NAPA ProSelect Filters | 21040 |
| NAPA Silver Filters | 21040 |
| Napa Proformer | 21040 |
| Outboard Marine (OMC) | 502903 |
| PUREPRO | L111 |
| PUROLATOR | TL10111, TL10111BP, PBL10111, PL10111 |
| Parts Master | 61040 |
| Parts Plus | PH47 |
| Pennzoil | PZ-9A |
| Penske | PN3387A |
| Pentius | PLB3387 |
| Performax | PO-9A |
| Powerflow | SL10111 |
| Prime Guard | POF111 |
| Pro-Gauge | PGO-111 |
| Pro-Tec | 107 |
| Promotive | PH111 |
| Pronto | PO111 |
| PureZone | 8-51040 |
| Purolator | L10111 |
| QAP Filter | QL10111 |
| Quaker State | QS3354 |
| STP | SL3387A |
| STP Filters | S3387A |
| Saab | 45 02 696 |
| Security Filters | SO-111 |
| Security Global | L3387A |
| Service Champ | OF111 |
| Service Pro | M111 |
| Shell – Archived | SH26 |
| Sierra Marine | 18-7974 |
| Super Tech Filters | ST3387 |
| Suzuki | 16510-85Z02 |
| TruStar | TO3387A |
| VAICO | V400089 |
| Valucraft | V3387A |
| Valvoline | VO-16 |
| Vera | 10-01691 |
| WALMI | WS-3387 |
| WIX FILTERS | WIX FILTERS, 51040, 51040XP |
| WORLDPAC | W0133-1633179-KN |
| Wix | 51040 |
| Z-Max | M111 |
PRIME GUARD POF111 Fits Vehicles
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Saturn Relay (2005-2006)
- Chevrolet Express Cargo (2009-2014)
- Pontiac Wave5 (2005-2007)
- Jeep DJ5 (1980-1983)
- Pontiac G3 (2007-2008)
- Pontiac G4 (2006)
- Fiat Albea (2009-2011)
- Fiat Idea (2008-2009)
- Fiat Strada (2007-2011)
- Fiat Palio (2006-2008)
- Chevrolet Tornado (2004-2020)
- Chevrolet Meriva (2004-2008)
- Chevrolet Chevy Monza (2003)
- Chevrolet Zafira (2002-2004, 2006)
- Chevrolet Corsa (2002-2008)
- Chevrolet Astra (2002-2006)
- Chevrolet G30 (2001-2002)
- Chevrolet Cargo Van (2000, 2003-2004)
- Chevrolet Tigra (1999)
- Chevrolet Chevy Pickup (1999-2003)
- Chevrolet Lumina Van (1995-1996)
- Chevrolet Chevy (1994-2012)
- Chevrolet Aveo5 (2006-2008)
- Suzuki Swift+ (2004-2008)
- Buick Allure (2005-2009)
- Pontiac Wave (2005-2008)
- Chevrolet Optra (2004-2010)
- Buick Lucerne (2006-2008)
- Pontiac Torrent (2006-2009)
- Asuna SE (1993)
- Asuna GT (1993)
- Suzuki Reno (2005-2008)
- Pontiac G6 (2005-2006)
- Chevrolet Uplander (2005-2006)
- Buick LaCrosse (2005-2009)
- Buick Terraza (2005-2006)
- Chevrolet Equinox (2005-2009)
- Suzuki Forenza (2004-2008)
- Chevrolet Aveo (2004-2008, 2012-2018)
- Pontiac Optima (1988-1991)
- Pontiac Tempest (1987-1989, 1991)
- Pontiac Laurentian (1980-1981)
- Pontiac Acadian (1976-1987)
- American Motors Spirit (1980-1982)
- American Motors Eagle (1981-1984)
- American Motors Concord (1980-1982)
- Saab 9000 (1995-1997)
- Saab 900 (1994-1997)
- Pontiac Ventura (1977)
- Pontiac Trans Sport (1992-1999)
- Pontiac T1000 (1981-1987)
- Pontiac Sunfire (1995-2002)
- Pontiac Sunbird (1976-1980, 1986-1994)
- Pontiac Phoenix (1977-1984)
- Pontiac Parisienne (1980-1985)
- Pontiac Montana (1999-2006)
- Pontiac LeMans (1977-1981, 1988-1993)
- Pontiac J2000 Sunbird (1984-1985)
- Pontiac J2000 (1982-1983)
- Pontiac Grand Prix (1978-1987, 1990-1991, 1994-2008)
- Pontiac Grand LeMans (1977-1983)
- Pontiac Grand Am (1978-1980, 1985-2005)
- Pontiac Firebird (1977-1989, 1993-2002)
- Pontiac Fiero (1985-1988)
- Pontiac Catalina (1977-1981)
- Pontiac Bonneville (1978-2005)
- Pontiac Aztek (2001-2005)
- Pontiac 6000 (1982-1987, 1989)
- Oldsmobile Toronado (1981-1984, 1986-1992)
- Oldsmobile Starfire (1975-1980)
- Oldsmobile Silhouette (1992-2004)
- Oldsmobile Regency (1997-1998)
- Oldsmobile Omega (1977-1984)
- Oldsmobile LSS (1996-1999)
- Oldsmobile Intrigue (1998-1999)
- Oldsmobile Firenza (1983-1988)
- Oldsmobile 88 (1992-1999)
- Oldsmobile Delta 88 (1977-1991)
- Oldsmobile Cutlass Supreme (1977-1991, 1993-1997)
- Oldsmobile Cutlass Cruiser (1980-1983, 1987-1994)
- Oldsmobile Cutlass Calais (1978-1984, 1988-1991)
- Oldsmobile Cutlass Salon (1978-1980, 1985-1987)
- Oldsmobile Cutlass (1977-1981, 1987-1989, 1994-1999)
- Oldsmobile Cutlass Ciera (1982-1996)
- Oldsmobile Calais (1985-1987)
- Oldsmobile Alero (1999-2004)
- Oldsmobile Achieva (1992-1998)
- Oldsmobile 98 (1981-1983, 1985-1996)
- GMC Sierra 1500 (2000-2013)
- GMC Savana 3500 (2000-2002)
- GMC Savana 2500 (2000-2006)
- GMC Savana 1500 (2000-2014)
- GMC Safari (1985-1990, 2000-2005)
- GMC Sonoma (1991-2003)
- GMC S15 (1983-1990)
- GMC Jimmy (2000-2004)
- GMC S15 Jimmy (1983-1989)
- GMC Caballero (1978-1980)
- Chevrolet Venture (1997-2005)
- Chevrolet Silverado 1500 (2000-2013)
- Chevrolet S10 (1983-2003)
- Chevrolet Blazer (2000-2005)
- Chevrolet S10 Blazer (1983-1989)
- Chevrolet Monza (1978-1980)
- Chevrolet Monte Carlo (1978-1987, 1995-2005)
- Chevrolet Malibu (1978-1980, 1997-2006)
- Chevrolet Lumina APV (1992-1996)
- Chevrolet Lumina (1993-2001)
- Chevrolet LLV (1987-1995)
- Chevrolet Impala (1980-1985, 2000-2005)
- Chevrolet Express 2500 (2000-2006)
- Chevrolet Express 1500 (2000-2014)
- Chevrolet El Camino (1978-1984)
- Chevrolet Corsica (1987-1996)
- Chevrolet Citation II (1984-1985)
- Chevrolet Citation (1980-1983)
- Chevrolet Chevette (1976-1987)
- Chevrolet Celebrity (1982-1989)
- Chevrolet Cavalier (1985-2002)
- Chevrolet Caprice (1980-1985)
- Chevrolet Camaro (1980, 1982-1989, 1993-2002)
- Chevrolet Beretta (1987-1996)
- Chevrolet Astro (1985-1990, 2000-2005)
- Cadillac Seville (1981-1982)
- Cadillac Fleetwood (1980-1982)
- Cadillac Eldorado (1981-1982)
- Cadillac DeVille (1980-1982)
- Cadillac Cimarron (1985-1988)
- Cadillac Catera (1997-1998)
- Buick Somerset Regal (1985)
- Buick Somerset (1986-1987)
- Buick Skylark (1977-1998)
- Buick Skyhawk (1975-1980, 1982-1988)
- Buick Riviera (1979-1993, 1995-1999)
- Buick Rendezvous (2002-2007)
- Buick Regal (1977-1987, 1990-2004)
- Buick Reatta (1988-1991)
- Buick Park Avenue (1991-2005)
- Buick Estate Wagon (1980)
- Buick LeSabre (1976-2005)
- Buick Electra (1980-1990)
- Buick Century (1977-2005)
- Jeep Wagoneer (1984-1986)
- Jeep Scrambler (1981-1986)
- Jeep Comanche (1986)
- Jeep Cherokee (1984-1986)
- Jeep CJ7 (1980-1986)
- Jeep CJ5 (1980-1983)
- Isuzu Trooper (1989-1991)
- Isuzu Rodeo Sport (2001-2003)
- Isuzu Rodeo (1991-1992, 1998-2003)
- Isuzu Pickup (1991-1994)
- Isuzu Hombre (1996-2000)
- Isuzu Amigo (1998-2000)
- Daewoo Nubira (1999-2002)
- Daewoo Leganza (1999-2002)
- Daewoo Lanos (1999-2002)
- Checker Marathon (1980)
