Description

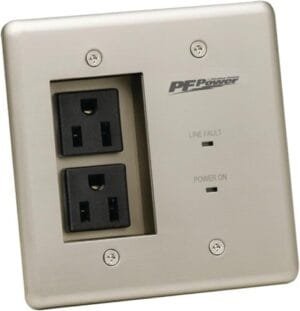

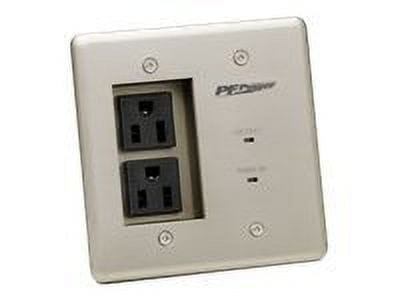

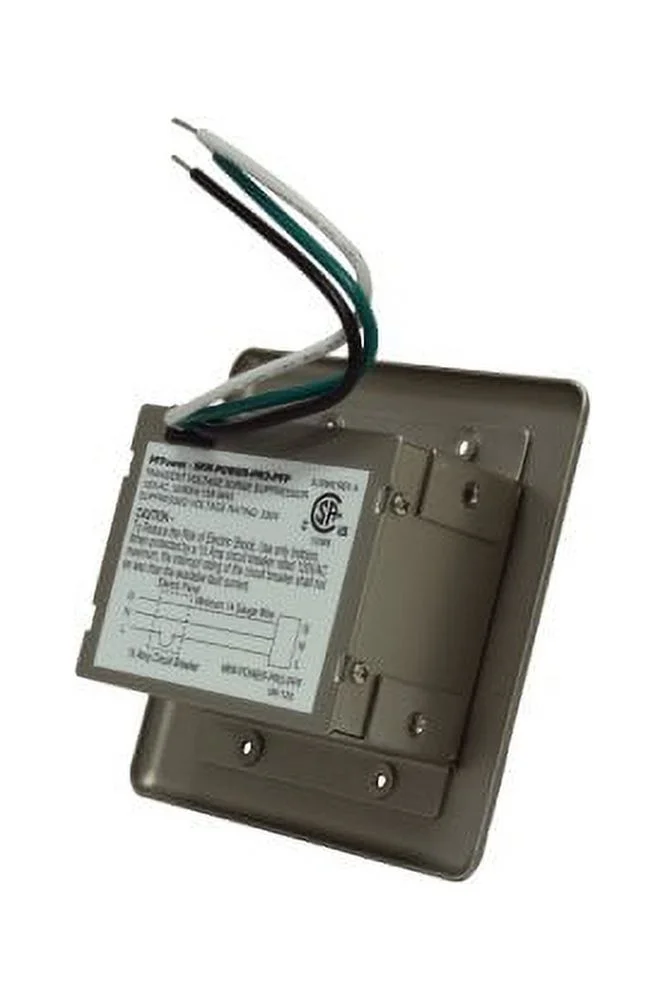

MIW-POWER-PRO-PFP 15A In-Wall Power Conditioner, 2 Outlets, W Surge Protection, EVS, EMI/RF Filtration General Weight – 2 lbs. Dimensions – 4.5 in. W x 2 in. D x 4.5 in H AC Power UL1449 Suppression Rating – 330V Total Current Capacity – 15 A Thermal Fusing – Yes Protection Modes – L-N, L-G, N-G Peak Impulse Current – 32, 500 Amps Line Voltage – 120V, 50/60Hz Energy Dissipation – 546 Joules Catastrophic Surge Circuit – Yes AC Outlets, Total – 2 Voltage Monitoring Circuit Over-voltage shutoff – 142 VAC ± 5 VAC Power Outlet Faceplate Signal Line Protection – Not Included / Modules Sold Seperately Noise Filtration – Level 1 AC Connectors – 2 NEMA 5-15
- RING TYPE
- 8 INCH W X 4-5/8 INCH D X 15 INCH H SIZE
- 6 AWG TO 250 MCM (LINE/LOAD), 6 AWG TO 350 MCM (NEUTRAL) WIRE SIZE
- UL 414 APPROVAL
- 600 V VOLTAGE RATING
- SURFACE MOUNTING
- NEMA 3R ENCLOSURE
- 200 AMPERE CURRENT RATING
- 1-PHASE 3-WIRE CIRCUIT CONFIGURATION
- OVERHEAD SERVICE TYPE
- 2 INCH AW HUB TYPE
- (1) 1/2 INCH, (4) (1 INCH-1-1/4 INCH-1-1/2 INCH-2 INCH) CONCENTRIC KNOCKOUT KNOCKOUT(S)
- 4 JAW(S)
- NO BYPASS SWITCH
- FINISH ANSI 61 GRAY ACRYLIC ELECTROCOATED
- INCLUDES ALUMINUM SNAP TYPE RING
- APPLICABLE STANDARD ANSI C12.7
