Description
Tapered roller bearings are bearings that have been designed to handle the heavy loads typically seen in semi-trucks. These bearings are made of stamped steel, which gives them the strength and durability needed to stand up to the heavy loads they are designed to support. In addition, the design of tapered roller bearings helps to reduce structural resonance, which can result in a smoother operation for the vehicle.
Specifications:

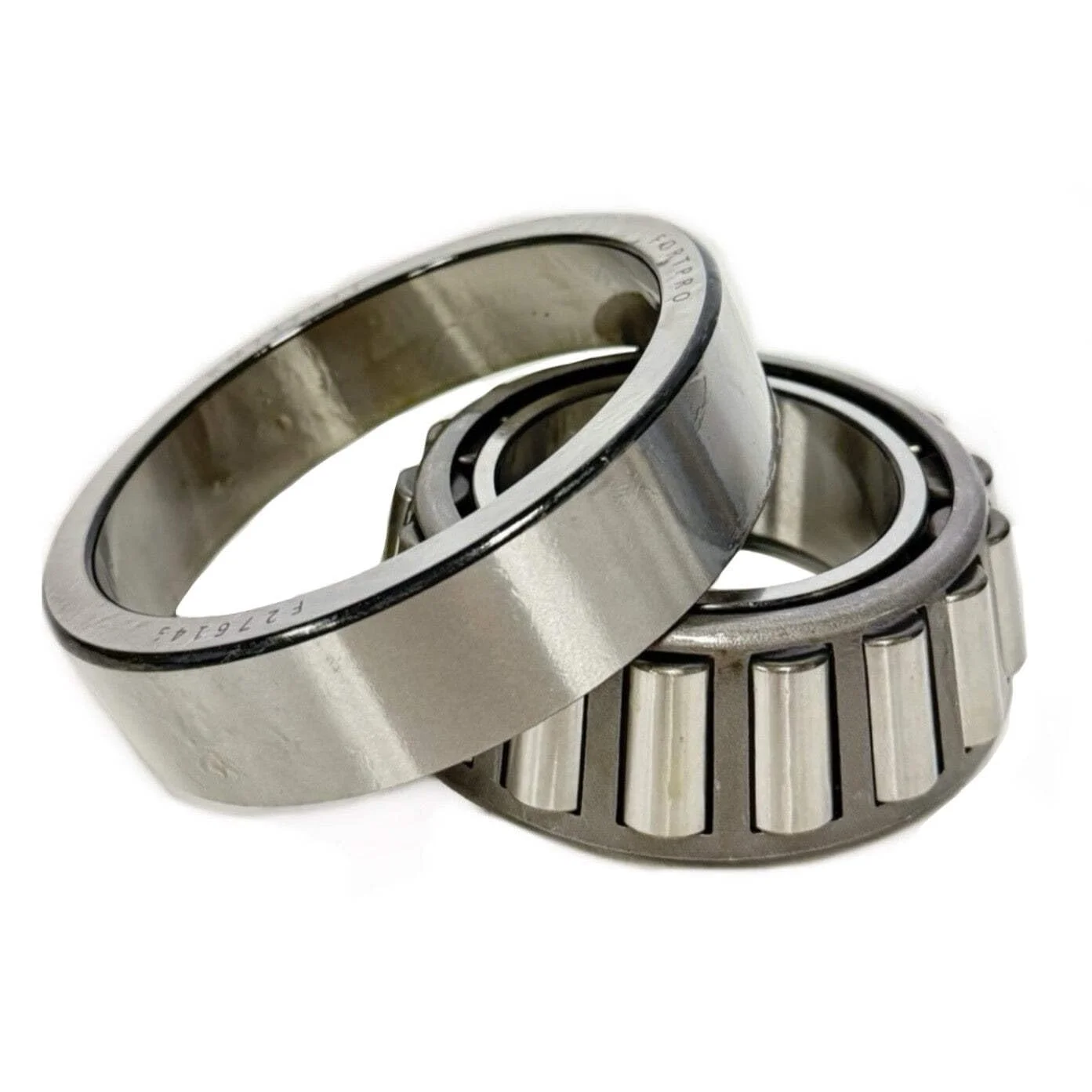

- Part: Tapered Roller Bearings Set (Cone/Cup )
- Part OEM: 594A/592A, Set 403

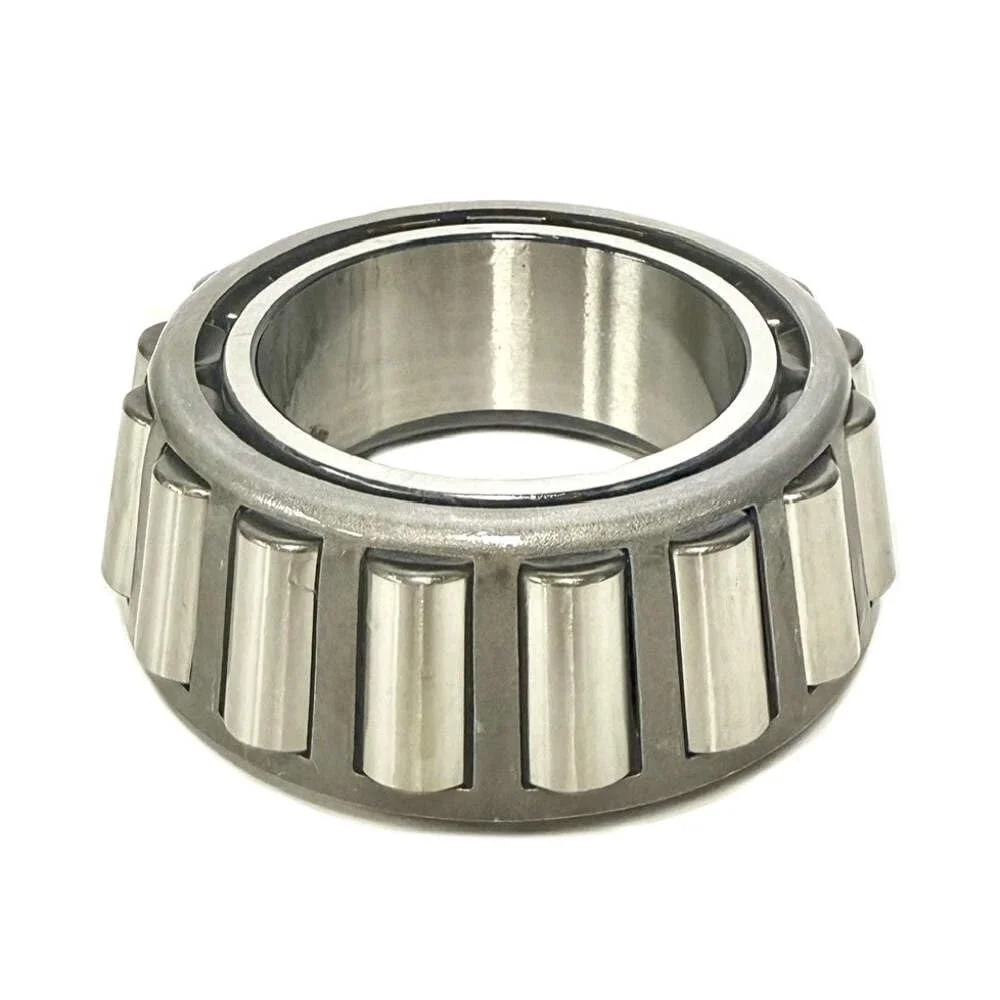

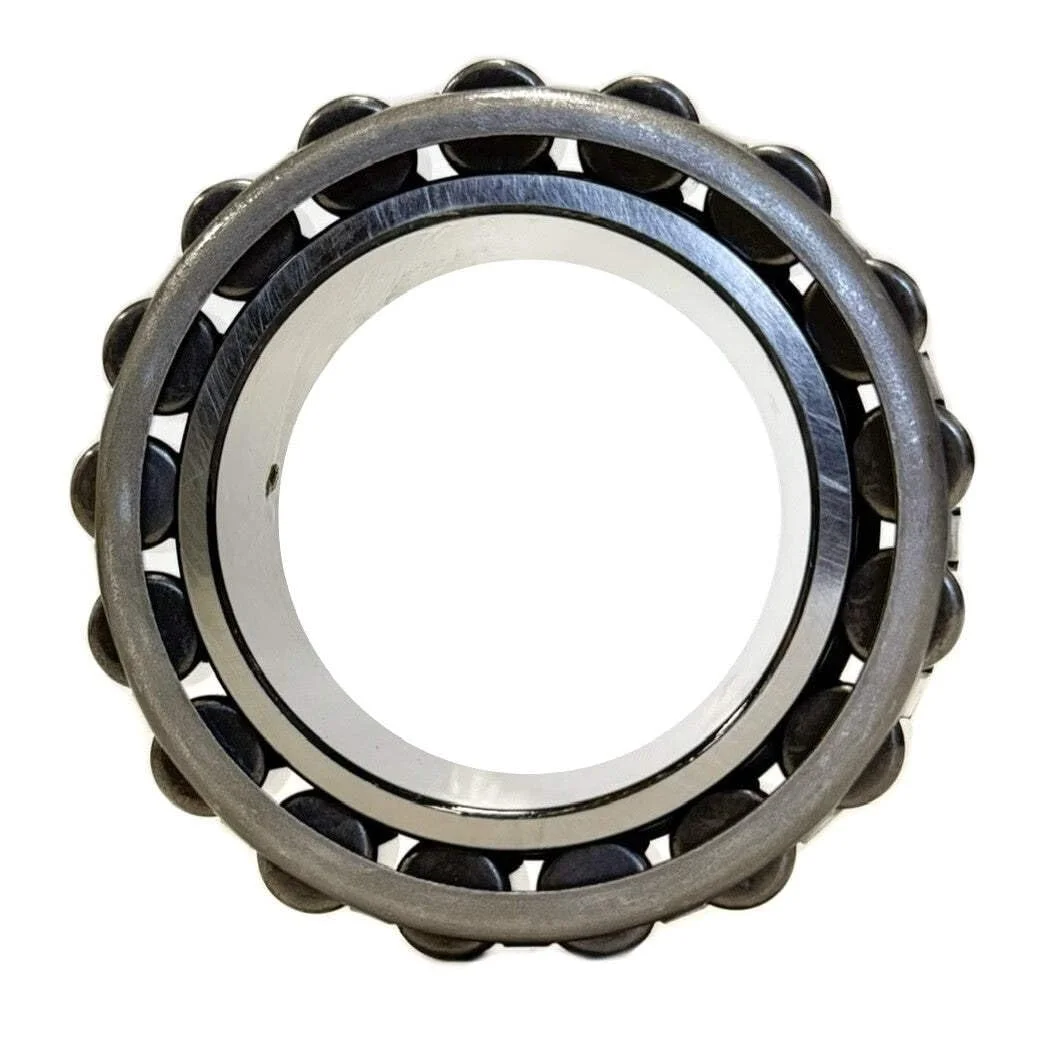

- Cone Part Number: 594A

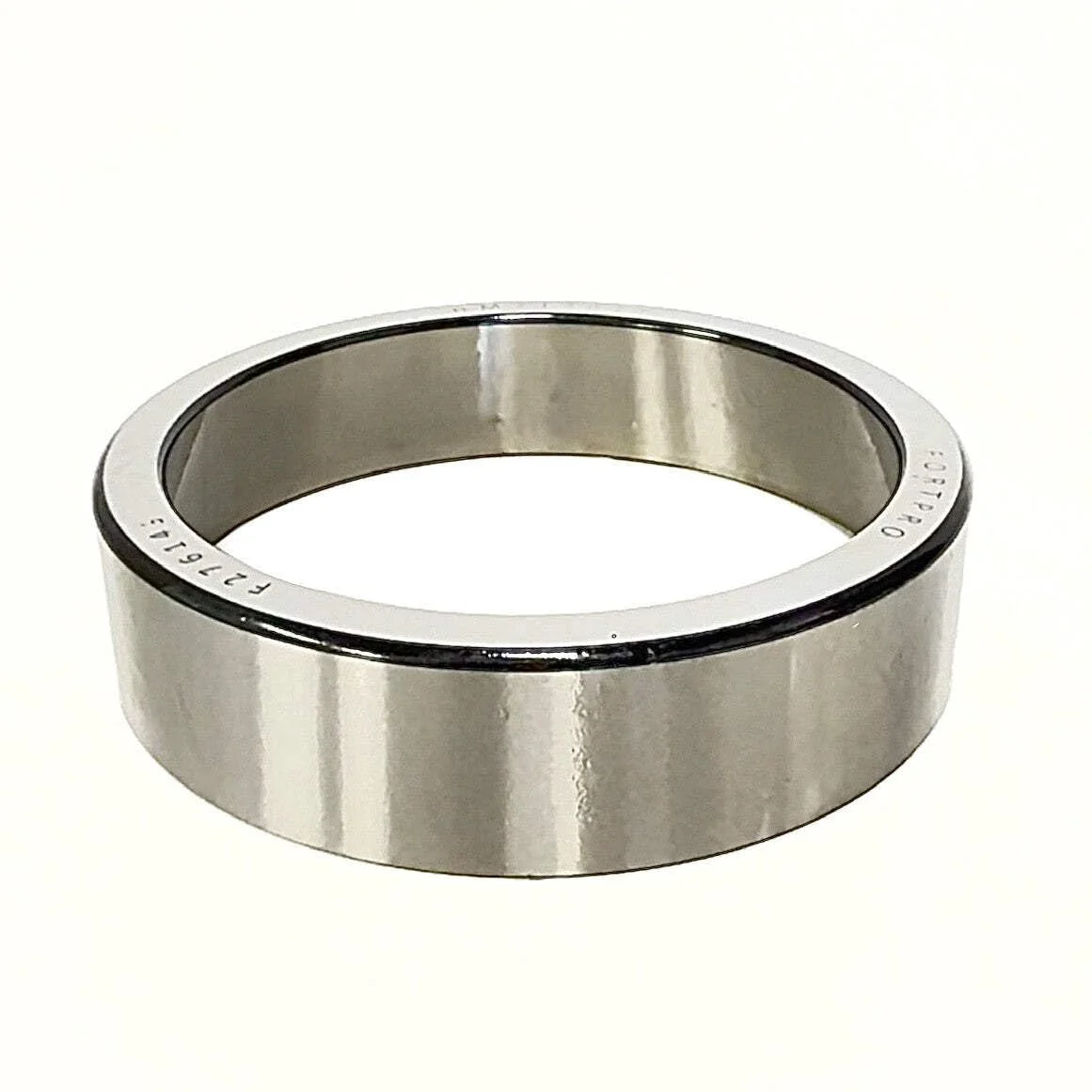

- Cup Part Number: 592A
- Contact angle: 5.067 degrees
- Bearing Weight: 5.4 lb
- Bore: 3 3/4″ (95.25 mm)
- Cup Outer Diameter: 6″ (152.4 mm)
- Cone Width: 1.4300″ (36.322 mm)
- Cup Width: 1 3/16″ (30.163 mm)
- Bearing Width: 1 9/16″ (39.688 mm)
CrossReference:
- Federal Mogul: HD203
- NTN: NBA64
- Timken: 594A – 592A, Set 403
- SKF: 594A/592A, Set 403
- Very Important: Please Verify this product Description and Compatibility before Buying
- Single row tapered roller bearings are designed to accommodate combined loads. These bearings consist of an inner ring (cone), an outer ring (cup), a cage, and rollers, which distribute the radial and axial loads evenly across the roller.
- The inner ring with roller and cage (cone) can be mounted separately from the outer ring (cup).
- The separable components are interchangeable, making assembly, disassembly, and maintenance inspection routines easy as well.
- This unique tapered roller bearing is used at a moderate speed, high load applications, including automotive conveyor and axle systems.
